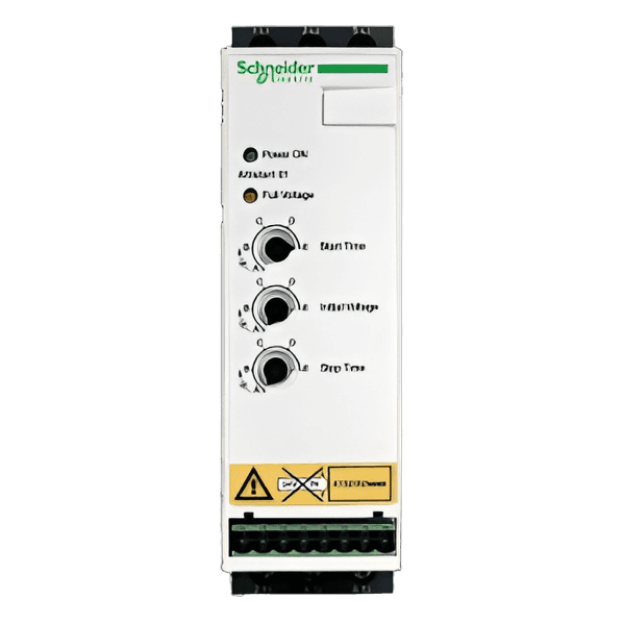

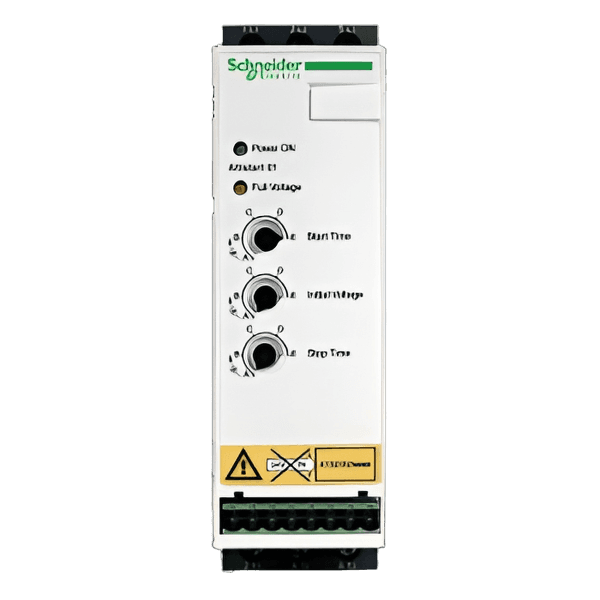

SOFT-START STOP 32A 380 415V

soft starter for asynchronous motor ATS01N232QN

Call For Pricing

Manufacturer: Schneider

SKU: SPEP0E01130

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

soft starter for asynchronous motor -
ATS01 - 32 A - 380..415V - 15 KW
ATS01N232QN

Products specifications

Attribute name	Attribute value
Main
Range of product	Altistart 01
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Simple machine
Device short name	ATS01
Network number of phases	3 phases
[Us] rated supply voltage	380...415 V - 10...10 %
Motor power kW	15 kW, 3 phases at 380...415 V
IcL starter rating	32 A
Utilisation category	AC-53B conforming to EN/IEC 60947-4-2
Current consumption	160 A at nominal load
Type of start	Start with voltage ramp
Power dissipation in W	4.5 W at full load and at end of starting \| 324.5 W in transient state
Complementary
Marking	CE
Operating position	Vertical +/- 10 degree
Width	45 mm
Height	154 mm
Net weight	0.56 kg
Depth	131 mm
Compatibility code	ATS01N2
Motor power range AC-3	15…25 kW at 380…440 V 3 phases
Motor starter type	Soft starter
Assembly style	With heat sink
Function available	Integrated bypass
Supply voltage limits	342…456 V
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Output voltage	<= power supply voltage
[Uc] control circuit voltage	Built into the starter
