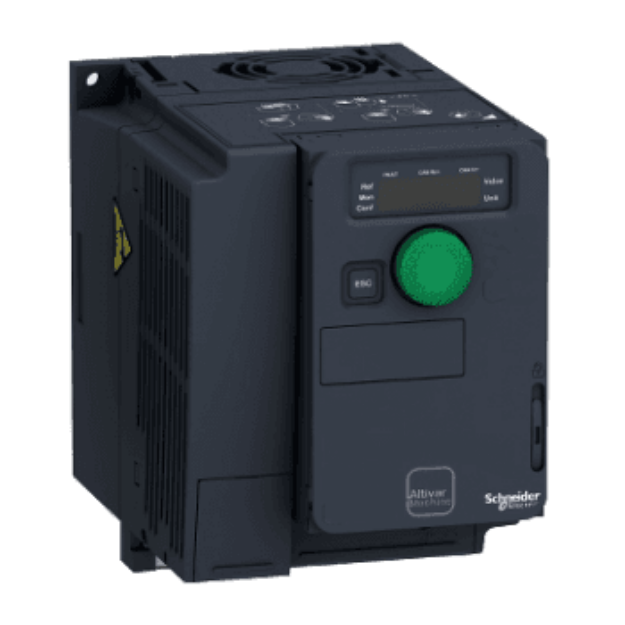

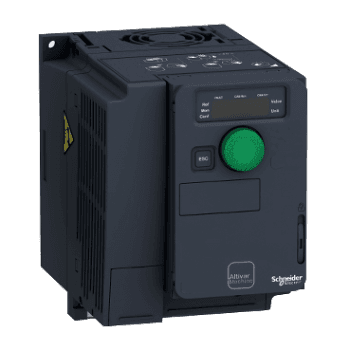

Altivar Machine ATV32007N4C

ATV32007N4C

Call For Pricing

Manufacturer: Schneider

SKU: SPEP1212193

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

variable speed drive ATV320 -
0.75kW - 380...500V - 3 phase -
compact

Mercury Free

Rohs Exemption Information: Yes

Circularity Profile: End of Life Information

Products specifications

Attribute name	Attribute value
Main
EMC filter	Class C2 EMC filter integrated
Main
Range of product	Altivar Machine ATV320
Product or component type	Variable speed drive
Product specific application	Complex machines
Variant	Standard version
Format of the drive	Compact
Mounting mode	Wall mount
Communication port protocol	Modbus serial \| CANopen
Option card	Communication module, CANopen \| Communication module, EtherCAT \| Communication module, Profibus DP V1 \| Communication module, PROFINET \| Communication module, Ethernet Powerlink \| Communication module, EtherNet/IP \| Communication module, DeviceNe
[Us] rated supply voltage	380...500 V - 15...10 %
Nominal output current	2.3 A
Motor power kW	0.75 kW for heavy duty
IP degree of protection	IP20
Complementary
Width	105.0 mm
Height	142.0 mm
Depth	158.0 mm
Net weight	1.2 kg
Maximum input current	3.6 A
Maximum output voltage	500 V
Apparent power	2.4 kVA at 500 V (heavy duty)
Network frequency	50...60 Hz
Discrete input number	7
Discrete input logic	Positive logic (source) \| Negative logic (sink)
Discrete output number	3
Analogue input number	3
Analogue output number	1
Environment
Operating position	Vertical +/- 10 degree
Product certifications	CE \| ATEX \| NOM \| GOST \| EAC \| RCM \| KC
Marking	CE \| ATEX \| UL \| CSA \| EAC \| RCM
Standards	IEC 61800-5-1
Volume of cooling air	18.0 m3/h
Overvoltage category	III
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
Regulation loop	Adjustable PID regulator
Ambient air transport temperature	-25…70 °C
