Output Ratings
|
|
Generating Set Model
|
230 / 400V, 50Hz |
|
Prime
|
1000 kVA / 800 kw Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. |
|
Standby
|
1100 kVA / 880 kw Standby Rating: These ratings are applicable for supplying continuous power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). |
|
Ratings
|
Ratings at 0.8 power factor |
|
Rating and Performance Data
|
|
Engine Make
|
YORC |
|
Engine Model
|
YORC6C1320-D31 |
|
Alternator Make
|
YORC |
|
Alternator Model
|
YORC404J |
|
Control Panel Make
|
COMAP |
|
Control Panel Model
|
MK 7 (Digital) |
|
Circuit Breaker Make
|
ABB |
|
Circuit Breaker Type
|
3 Pole MCCB |
|
Base Frame
|
Heavy Duty Fabricated Steel |
|
Engine Speed
|
1500 1800 |
|
Frequency
|
50Hz 60Hz |
|
Fuel Consumption
|
Litres / Hours |
|
Prime Rating
|
50% - 122.3/ 75% - 176.3 |
|
Dimension and Weight
|
|

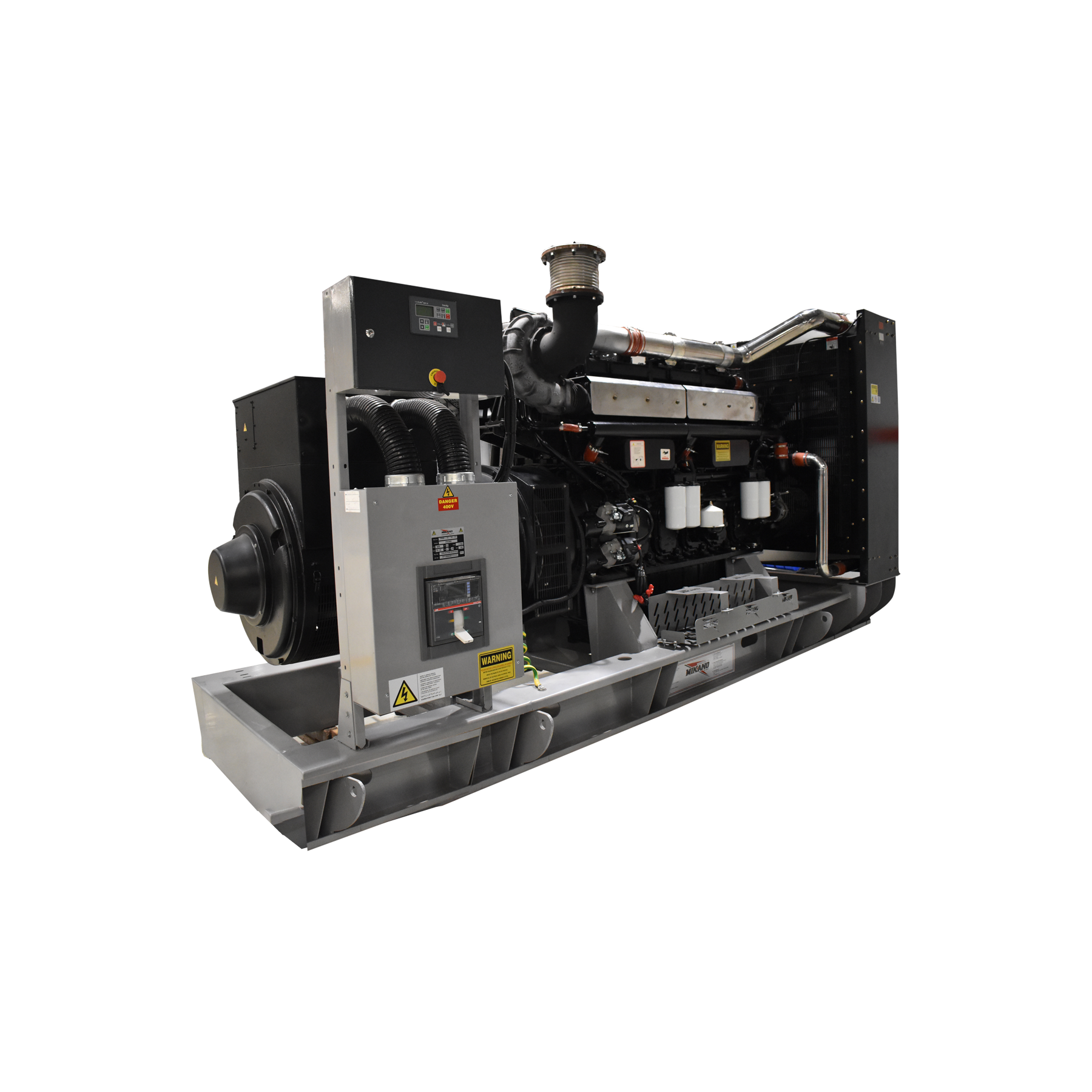

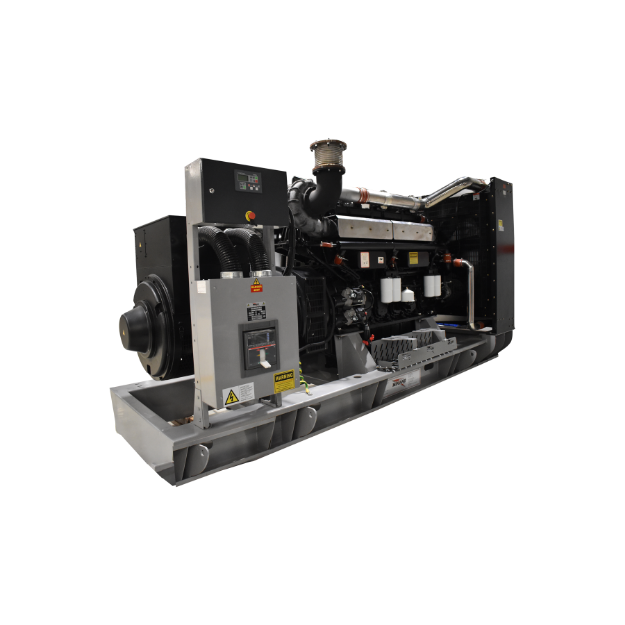

Basic Genset
|
L (cm)=455 / W (cm)=204 / H (cm)=248 / Weight (kg)=7845 |
|
Soundproof Genset
|
L (cm)=880 /W (cm)=270 / H (cm)=405 / Weight (kg)=10950 |
|
Soundproof Genset (Yorc Diesel MKY)
|
|
Soundproof
|
Mikano Soundproof enclosure range ensures optimum performance in the harshest environments, they are fully weatherproof and incorporate internally mounted exhaust silencers. Designed on modular principles, they have interchangeable components permitting on-site repair, fully access doors and access panels that provide optimal service and maintenance access. Extremely durable and robust, the enclosures are designed to resist corrosion and handling damage with the ability to withstand rough handling common on many construction sites. The sound attenuated enclosures reduced sound levels to comply with the international and European standards. |
|
Durable and Robust Construction
|
|
Durable and Robust Construction
|
High grade steel protected by powder coated paint. Single piece roof structure. Black finish stainless steel locks and hinges. Zinc plated / stainless steel fasteners. |
|
Security and Safety
|
|
Security and Safety
|
Emergency stop push button mounted on enclosure. Cooling fan and battery charging alternator fully guarded. Fuel fill and battery can only be reached via lockable access doors. Exhaust silencing system totally enclosed for operator safety. |
|
Excellent Service and Maintenance Access
|
|
Excellent Service and Maintenance Access
|
Side hinged doors on both sides of the enclosure opening to 180 Removable front and rear access panels. Oil drain piped to base frame, exterior to the enclosure. |
|
Transportability
|
|
Transportability
|
Tested and certified single point lifting facility. Drag points on base frame facilitating handling from both sides. Base feet to aid forklift handling. |
|
Warranty
|
|
Warranty
|
The products are warrantee against defects in material and workmanship for a period of 3000 hours or 4 years whichever comes first from the date of delivery to first user taking into consideration: - Ensuring initial startup is performed by an authorized representative of the company (MIKANO International Limited) or its dealers. - Installing, operating and maintaining the generator set in accordance with the manufacturer's instructions. |
