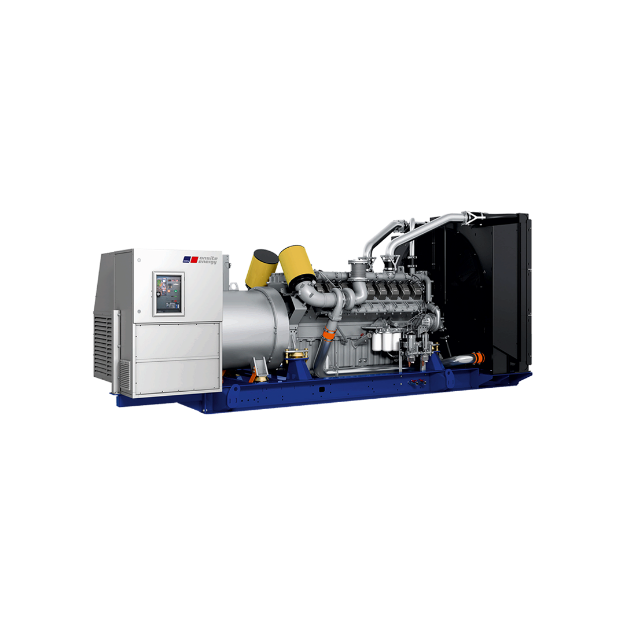

MTU 20V4000 DS3100

Be the first to review this product
Diesel Generator Set 2900 kVA - 3000kVA
Call For Pricing

Request Quote


This field is required


This field is required

This field is required


This field is required


Manufacturers: Mikano Generator , MTU
SKU: 20V4000 G24F
In stock

The MTU 20V4000 DS3100 Diesel Generator is a high-performance, industrial-grade generator designed for continuous 24/7 operation at 380V – 11 kV, 50 Hz, delivering prime power with optimized fuel consumption.

Powered by the 20V4000 G24F engine with water charge air cooling, this generator offers efficient energy output of 2900 kVA    - 3000 kVA, ensuring high availability of power with long maintenance intervals. Its optimized system integration reduces fuel usage while maintaining reliable and consistent performance.

Manufactured in ISO-certified facilities (ISO 2008:9001 and ISO 2004:1400), the MTU 20V4000 DS3100 complies with ISO 8528 standards and meets NEMA MG1, BS5000, ISO, DIN EN, and IEC standards, providing global reliability and support for critical applications.

This generator is ideal for industrial, commercial, and utility-scale applications where continuous, high-capacity power is required with low operational cost and extended service intervals.

Products specifications
Attribute name Attribute value
Application data / Engine
Manufacturer MTU
Model 16V4000G14F
Type 4-cycle
Arrangement 16V
Displacement: l 76.3
Bore 170 mm
Stroke 210 mm
Compression ratio 16.4
Rated speed 1500 rpm
Engine governor ECU 9
Max power 1798 kWm
Air cleaner Dry
Application data / Fuel System
Maximum fuel lift 5M
Total fuel flow 20 l/min
Application data / Fuel consumption
At 100% of power rating 407.3 l/hr 188 g/kwh
At 75% of power rating 310.3 l/hr 191 g/kwh
At 50% of power rating 217.7 l/hr 201 g/kwh
Liquid Capacity (lubrication)
Total oil system capacity 300 L
Engine jacket water capacity 175 L
Intercooler coolant capacity 50 L
Combustion Air Requirements
Combustion air volume 2.1 m3 /s
Max. air intake restriction 50 mbar
Cooling/Radiator System
Coolant flow rate (HT circuit) 68.5 m3/hr
Coolant flow rate (LT circuit) 30 m3/hr
Heat rejection to coolant 710 kW
Heat radiated to charge air cooling 260 kW
Heat radiated to ambient 90 kW
Fan power for electr. radiator (40°C) 38 kW
Exhaust System
Exhaust gas temp. (after turbocharger) 480 °C
Exhaust gas volume 5.4 m3 /s
Maximum allowable back pressure 85 mbar
Minimum allowable back pressure 30 mbar
