Easy9 distribution board - 3P - 125A - 12 ways- straight with fixlink

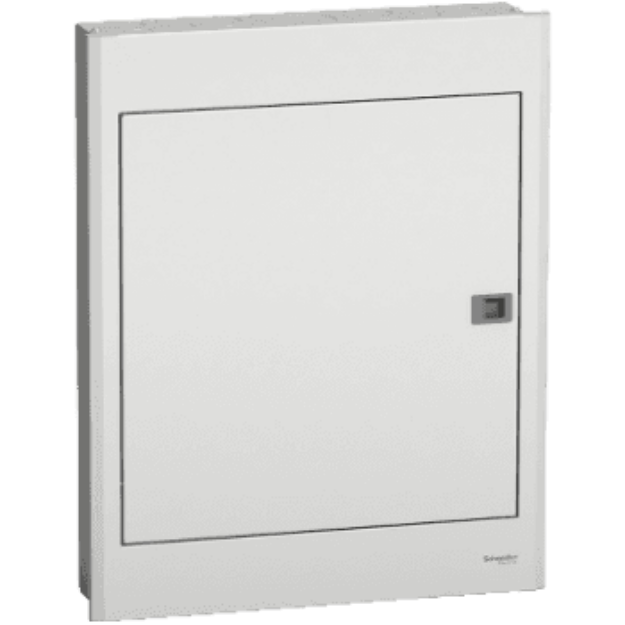

This Easy9 VTPN enclosure is a surface or flush mounted distribution board. The In rated current can be up to 125A. It is a three phase enclosure. The number of ways is 12. The cables can enter via 11 knock-outs. It is intended for installation in residential. The provided equipements are, washer, copper link, screws, removable front cover, insulated fishbone, adjustable pan assembly, provision for incomer and blanking plate. The colour of the enclosure is grey (RAL 7035). This enclosure comes with plain door, the enclosure material is powder coated steel. The IP degree of protection is IP40 closed door. The dimensions are (W) 466mm x (H) 461mm x (D) 110mm. According to IEC 62262 standard, the IK degree of protection is IK08. The operating temperature is from -5°C to +50°C. This enclosure is complies with IEC 61439-1 and 3 standards.
