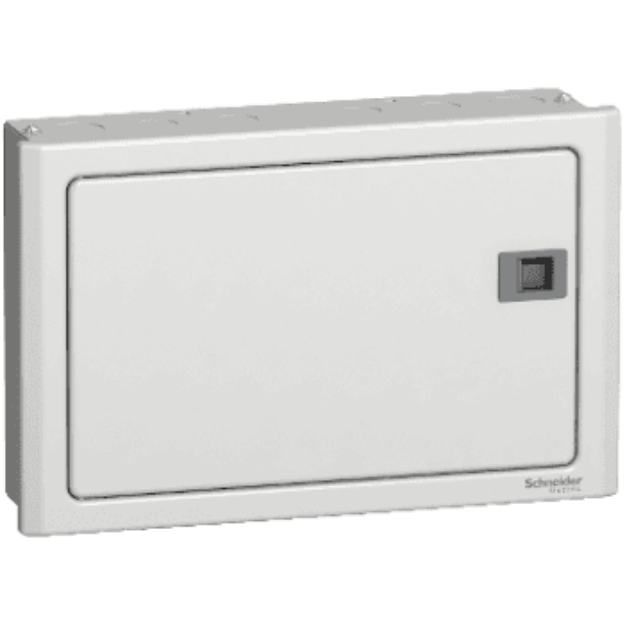

Easy9 distribution board - 3P - 125A - 12 ways- straight with fixlink

Be the first to review this product
EZ9ES12L
Call For Pricing

Request Quote


This field is required


This field is required

This field is required


This field is required


Manufacturer: Schneider
SKU: SPEP0C06214-copy
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This Easy9 enclosure is a surface or flush mounted distribution enclosure. The In rated current can be up to 100A. It is a single phase enclosure. The number of ways is 12. The cables can enter via 8 knock-outs. It is intended for installation in residential. The provided equipements are, washer, identification lable, screws and removable front cover. The colour of the enclosure is grey (RAL 7035). This enclosure comes with plain door, the enclosure material is powder coated steel. The IP degree of protection is IP40 closed door. The dimensions are (W) 470mm x (H) 232mm x (D) 90mm. According to IEC 62262 standard, the IK degree of protection is IK08. The operating temperature is 50°C to 50°C. This enclosure is complies with IEC 61439-1 and 3 standards.


Plain flat door with sliding knob to enable easy and safe opening and closing of door
notification_ok
Surface and flush along with plastering guide on side of the distribution board
notification_ok
Top and bottom removable gland plates with precut cable passthroughs
notification_ok
Earth and neutral terminal blocks
notification_ok
Straight busbar distribution board with Fixlink
notification_ok
Environmental performance of the product
Products specifications
Attribute name Attribute value
Main
Range Easy9
Product or component type Enclosure
Main
Enclosure type Distribution enclosure
Provided equipment 1 x washer | Identification label | 4 x screws | Removable front cover
Complementary
Enclosure mounting Surface | Flush
Number of plates 5 for plain plate
Network number of phases Single phase
Number of ways 12 ways
Type of rail DIN
Cable entry 8 knock-outs
Type of door Plain door
[In] rated current 100 A
Enclosure material Powder coated steel
Height Outside: 232 mm
Depth Outside : 90 mm
Width Outside: 470 mm
Colour Grey (RAL 7035)
Environment
Standards IEC 61439-1 | IEC 61439-3
Product certifications ASTA
IP degree of protection IP40 conforming to IEC 60529 (closed door)
IK degree of protection IK08 conforming to IEC 62262
Ambient air temperature for operation 50 °C
