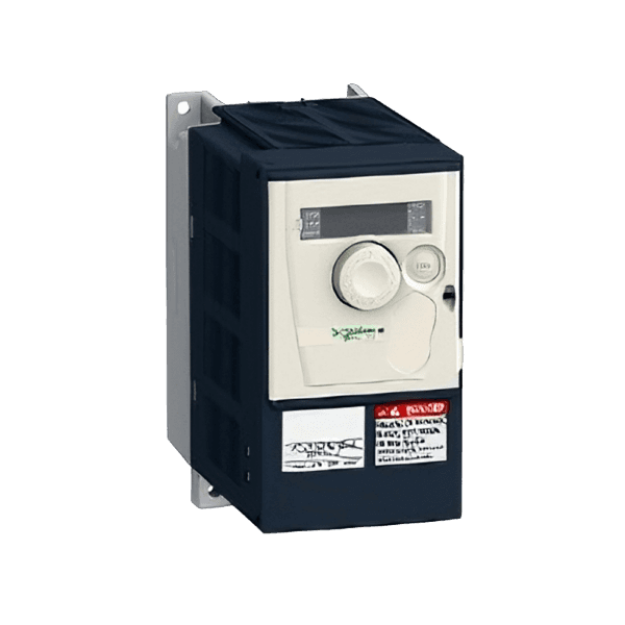

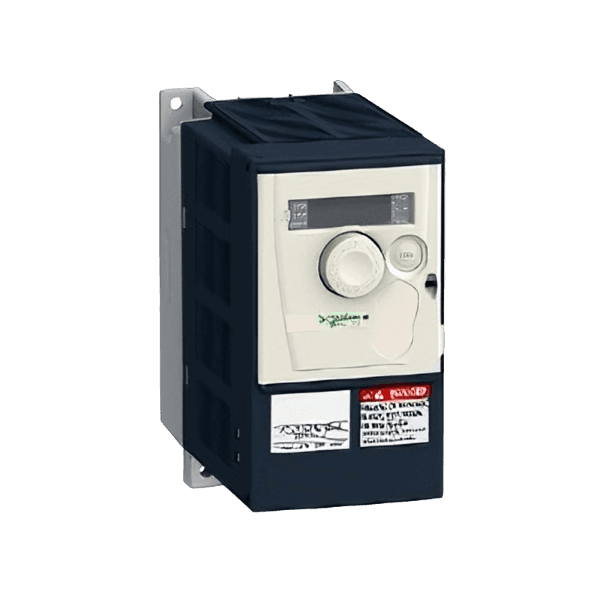

ATV312HU22N4

ATV312 ALTIVAR 2,2KW 500V 3 PHASES

Call For Pricing

Manufacturer: Schneider

SKU: SPEP1201133

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Variable speed drive ATV312 -
2.2kW - 5.9kVA - 79W - 380..500
V- 3-phase supply

Products specifications

Attribute name	Attribute value
Main
Range of product	Altivar 312
Product or component type	Variable speed drive
Product destination	Asynchronous motors
Product specific application	Simple machine
Assembly style	With heat sink
Component name	ATV312
Motor power kW	2.2 kW
Motor power hp	3 hp
[Us] rated supply voltage	380...500 V - 15...10 %
Supply frequency	50...60 Hz - 5...5 %
Network number of phases	3 phases
Line current	8.9 A at 380 V, Isc = 5 kA 6.7 A at 500 V
EMC filter	Integrated
Apparent power	6.9 kVA
Maximum transient current	8.3 A for 60 s
Power dissipation in W	79 W at nominal load
Speed range	1…60
Complementary
Supply voltage limits	323…660 V
Prospective line Isc	6 kA
Continuous output current	6.6 A at 4 kHz
Output frequency	0…600 Hz
Nominal switching frequency	4 kHz
Switching frequency	2...16 kHz adjustable
Transient overtorque	170…200 % of nominal motor torque
